Working Principle of Diode Laser Hair Removal Machine:

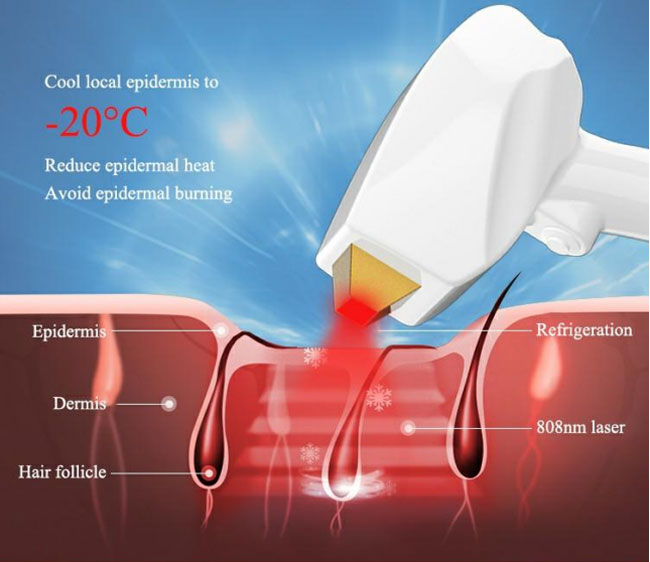

With 808nm+755nm+1064nm combined 3 wavelengths,this hair removal laser can effectively penetrate to target tissue(hair papilla). The laser light can be absorbed by the melanin in hair follicles, and converted into heat, thus to increase the hair follicle temperature. When the temperature rises high enough to irreversibly damage the hair follicle structure, the hair will disappear after a period of natural physiological of hair follicles and thus achieve the purpose of permanent laser hair removal.

With our high quality diode laser hair removal machine, the appropriate pulse duration ensures sufficient thermal damage to target tissue without affecting the surrounding tissues; the appropriate energy density assures strong energy output enough to injure the target tissue without influencing normal tissue; the effective epidermis protection measures guarantee the epidermis safety thus the treatment safety. Moreover, with special design of multiple-pulse laser, semiconductor--808nm+755nm+1064nm can heat the hair follicle to 48℃ under a lower energy density mode,and maintain for a while by sliding the handle (under 10hz), so as to deprive the hair follicle and the growth stem cells of their growth activity,to achieve permanent laser hair removal.

Advantage:

1. Three wavelengths: 808nm+755nm+1064nm diode laser to ensure the mechanism performance and clinical results.
2.Excellent performance: obvious results can be expected at the first laser hair removal treatment and suitable to all types of skin.
3.High energy: strong energy output, no pigmentation,no injuries to surrounding tissues.
4.Long laser width: the appropriate pulse duration ensures sufficient thermal damage to hair follicles.
5.Safety: no skin scattering, no harm to the skin and sweat glands, no scar, no any side-effect.

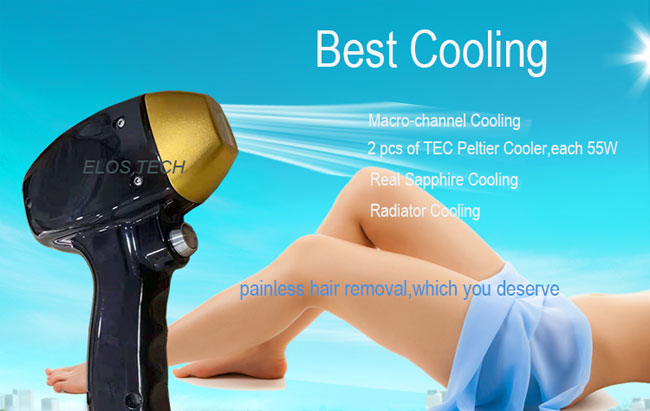

6.Combined cooling system:air cooling system+semi-conductor cooling system+water cooling system+handle sapphire cooling,to make painless and comfortable feelings during laser hair removal treatment.
7.Power module design: makes the maintenance more convenient and easy.

Technical Specification of laser hair removal

Machine Power	3500W
Handle Power	2000W
Screen	15.6 inch 4K screen
Spot Size	14mm*22mm or 14mm*33mm
New Cooling Technology	annular cooling chips
Pulse Width	10-400ms
Cooling System	sapphire contact cooling (-10℃~1℃ ) + air cooling +water cooling+semi-conductor cooling
Radiator	120*240 stainless steel (two groups) high pressure diaphragm pump, PP cotton+resin filter
Wavelength	808nm+755nm+1064nm
Repetition Rate	1- 10Hz
Energy	1 - 120J/cm2
Voltage	110V-120V/220V-240V, 50/60Hz

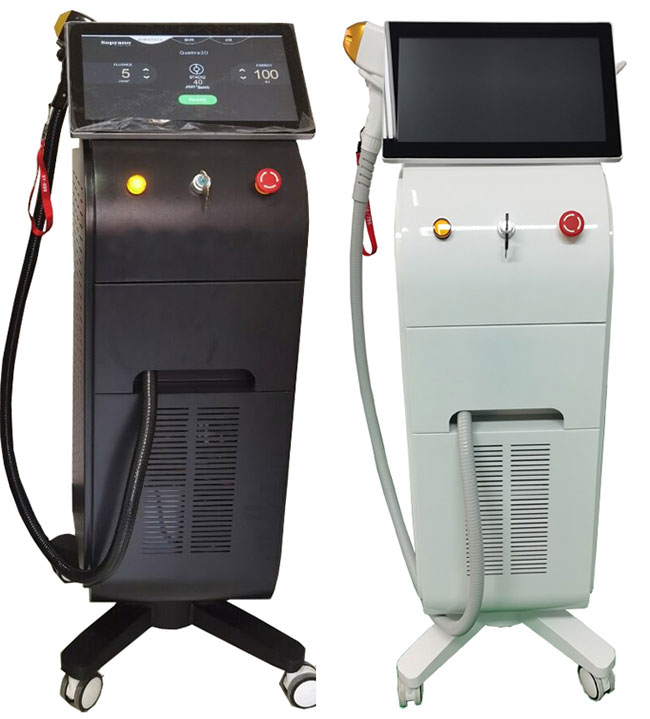

Two colors for option--white or black
